Goot RX-711AS is an anti-static easy to use Soldering Station. With a new sensor integrated into the heater, the 60W heat capacity allows faster temperature recovery during heavy soldering, reducing the reaction time even at lower temperature settings. Stability during heavy soldering enables low temperature soldering and reduces the risk of thermal shock to low capacity electronic parts.
MAIN FEATURES
- Temperature setting range: 200-480°C
- Set in temperature support accurate within 0,5°C
- Digital temperature indicator
- Thin, smooth and heatproof soldering iron power cable.
- Leak voltage is greatly reduced by proper grounding
- Comfortable ergonomic soldering iron handle with microcellular rubber bracket
- The heater is completely separated from the input power by the insulated transformer.
- Antistatic model
TECHNICAL SPECIFICATIONS
| Voltage | 240 V AC, 50/60Hz | |
| Power consumption | 65W | |
| Output voltage | 24V AC 60W | |
| Temperature setting range | 200-480° C | |
| Insulation resistance (500V DC) | Over 100MΩ | |
| Dimensions | Soldering unit | 195mm (w/o cord bushing) |
| Control Unit | 146(L)× 115(W)× 98(H)mm | |
| Weight | Soldering unit | Approx. 41g (w/o cord) |
| Control unit | Approx.1.5 kg (w/o cord) | |
| Leak voltage | Less than 0.5 mV | |
| Ground resistance | Less than 0.3Ω | |
| Control unit to soldering unit cord length | 1.2 m< | |
| Power cordlength | 1.3 m (3 core cable) ground plug< | |
| Accessory | Soldering iron stand | |

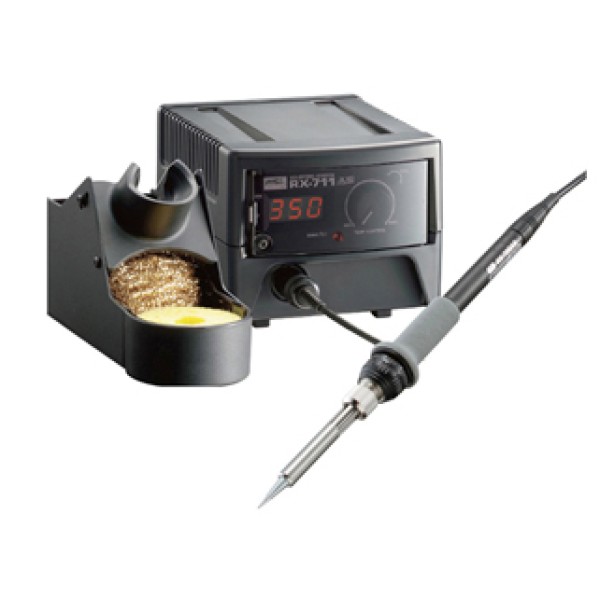

Goot RX-711AS Digital Soldering Station 60w
- Product Code: RX-711AS
- Availability: In Stock
-
$346.50
- Ex Tax: $315.00
