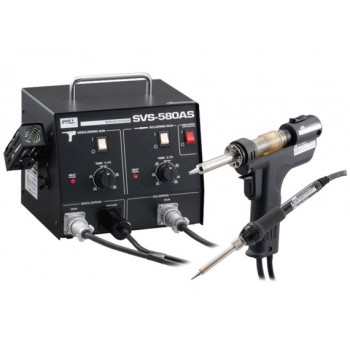

Goot SVS-580AS Solder/Desolder Station

The open-valve allows the device to reach vacuum pressure of -0.06MP (approx.-450mmHg) in only 0.1second. (about 4 times faster than our SVS-500AS).
Zero Volt Switch Circuit Reduces noise during heater ON/OFF.
Two-stage trigger switch - Pulling the trigger (lightly) activates the first stage switch. The pump starts, and the air pressure decreases in the vacuum chamber. Next, pulling the trigger fully activates the second stage. The open-valve will open, and the solder is sucked up at once by the negative pressure in the vacuum chamber.

Desoldering Unit 85w
Desoldering Temperature 250-450°C
Vacuum –0.08MPa (-600mmHg)
Soldering Iron 70w
Soldering Temperature 250-480°C
Includes TP-100N-S5 (1.5mm slim nozzle) & PX-2RT-B (0.5mm conical tip)
Uses TP-100N Nozzles & PX-2RT Soldering Tips

Made in Japan
