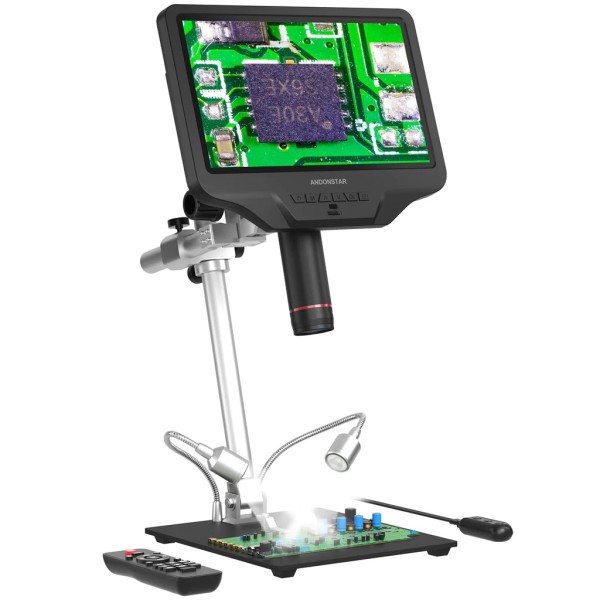

Andonstar AD409PRO HDMI 2160P Digital Video Microscope 10in Screen 300x

With a 10.1-inch large adjustable LCD screen, the AD409 digital microscope provides users with a better PCB inspection experience. It comes with 4 megapixels HD sensor, 2 adjustable LED fill lights, one HDMI cable and switch cable, one IR remote, and one UV filter (already assembled in the lens).

With a high-quality sensor, the HDMI digital microscope has max 5600x4200 (24M 5600x4200) photo resolution and can provide clear and high-quality images. Moreover, the magnification of AD409 can reach up to 300X and allows you to view the smallest solder joints on the large 10.1-inch display or on the external monitor connected with the microscope.

The AD409 supports the PC connection for Windows 7/8/10. The PC software with measurement is also supported. The AD409 digital microscope is able to be connected to mobile phones and tablets. By connecting with WiFi, the digital microscope can be used with a phone or iPad, permitting users to send images and photos from the microscope to a computer or another device.

Features
Inbuilt 10.1” HD LED display 1280x800
Working distance: 5cm to 30cm.
Real time imagery, no lag or latency.
Up to 300 times magnification (HDMI monitor 27 inch), 2880*2160P, 24fps
4× digital zoom.

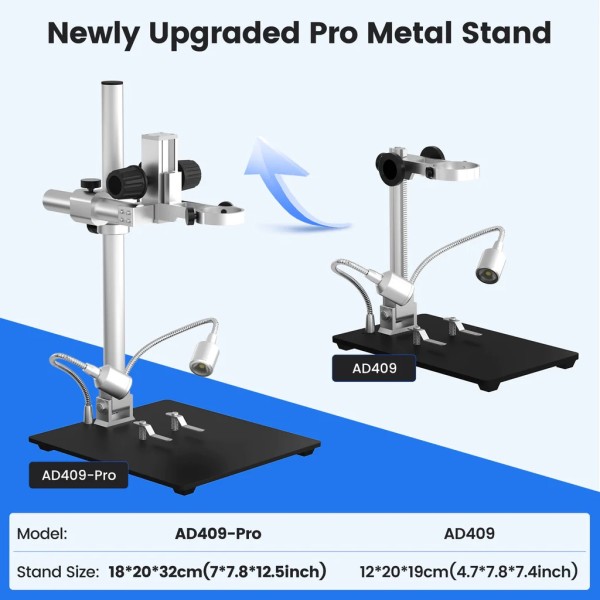

Metal stand, sturdy and durable with built in lights

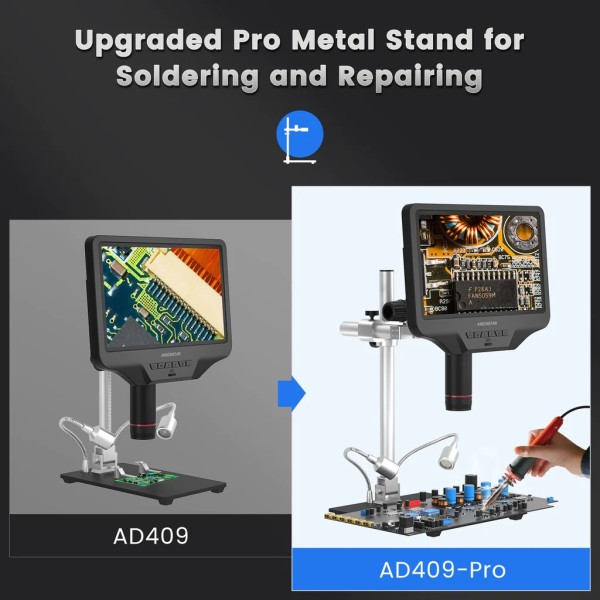

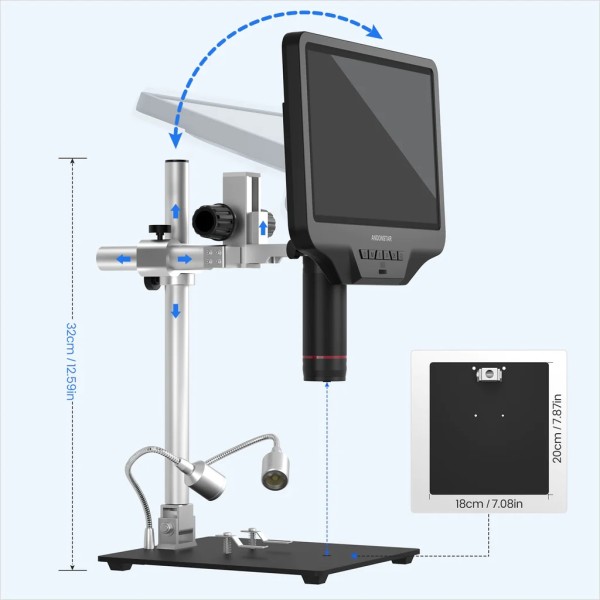

Adjustable stand, the microscope stand can move backward and forward, providing enough soldering working space.
HDMI video output.
Use USB capture software to view or record the image via your PC
Take still shots as well as live video feed, save them directly to a microSD card inserted in the data slot (microSD card not included).

Specifications
Image Sensor - 4 Mega Pixels HD Sensor
LCD Display - 10.1"
Still Image - Max 24M 5600x4200
Video Output - 2160 UHD, 1080 FHD, 720 HD, 120FPS
Focusing Range - Minimum 5cm
Video Format - MP4, Real time via HDMI w/o recording
Image Format - JPG
Storage - MicroSD 64G (not included)
PC Support - Windows 7/8/10, PC Software with measurement
Magnification - 300 times (HDMI monitor 27 inch)
Video Output - HDMI

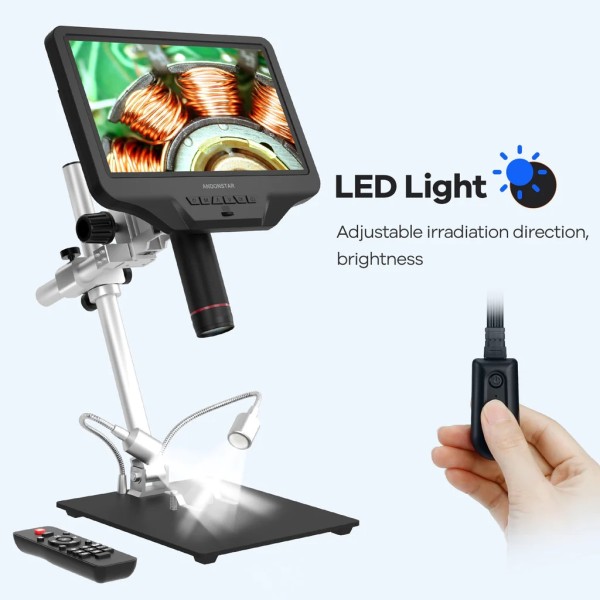

Light Source - 2  LED with the stand
Power - 5V DC (Included with Australian plug)
